Professional Manufacturer of Biomagnetic Beads
Precise capture, efficient purification —— Shanghai LNJNBio 220012 magnetic beads help scientific research take off
In molecular diagnostics, nucleic acid extraction, and immunoassays, high-efficiency magnetic bead separation technology has become essential for successful experiments. Shanghai Lingjun Biotech’s 220012 magnetic beads, with their exceptional superparamagnetic properties, high binding efficiency, and outstanding stability, provide researchers and industrial users with a one-stop solution to overcome experimental bottlenecks and achieve precise purification effortlessly!
Product parameters：
| 220012 | |
| Active group | Si-OH |
| Magnetic bead matrix | Superparamagnetic silica |
| mean particle diameter | 400 nm |
| value of saturated magnetic | ≥50 emu/g |
Product Advantages:
Superior suspension performance with high adsorption rate for small DNA fragments and a half-settling time exceeding 1 hour.
Featuring ultra-strong paramagnetic response and nano-scale magnetic core design, achieving rapid magnetic activation and uniform dispersion within 30 seconds—eliminating cumbersome steps in traditional centrifugation methods.
Exceptional stability with acid/alkali resistance and interference tolerance, ensuring strict batch consistency for high-throughput automated platforms, significantly boosting experimental efficiency. Flexible adaptability compatible with diverse sample types (serum, cells, tissues) and downstream applications (NGS, qPCR, magnetic bead ELISA), enabling multi-purpose use to reduce costs.
Broad Application Scenarios Empowering Multi-Field Research Molecular Biology:
Particularly suitable for small fragment and trace DNA extraction/purification, with high adsorption capacity for purifying 100 bp-50 kb DNA fragments for sequencing, restriction enzyme digestion, labeling, ligation, and cloning.
Disease Diagnosis: Tumor marker isolation, pathogen detection.
Drug Development: Antibody purification, targeted vector construction.
Food Safety & Environmental Monitoring: Rapid microbial enrichment.
Experimental cases:

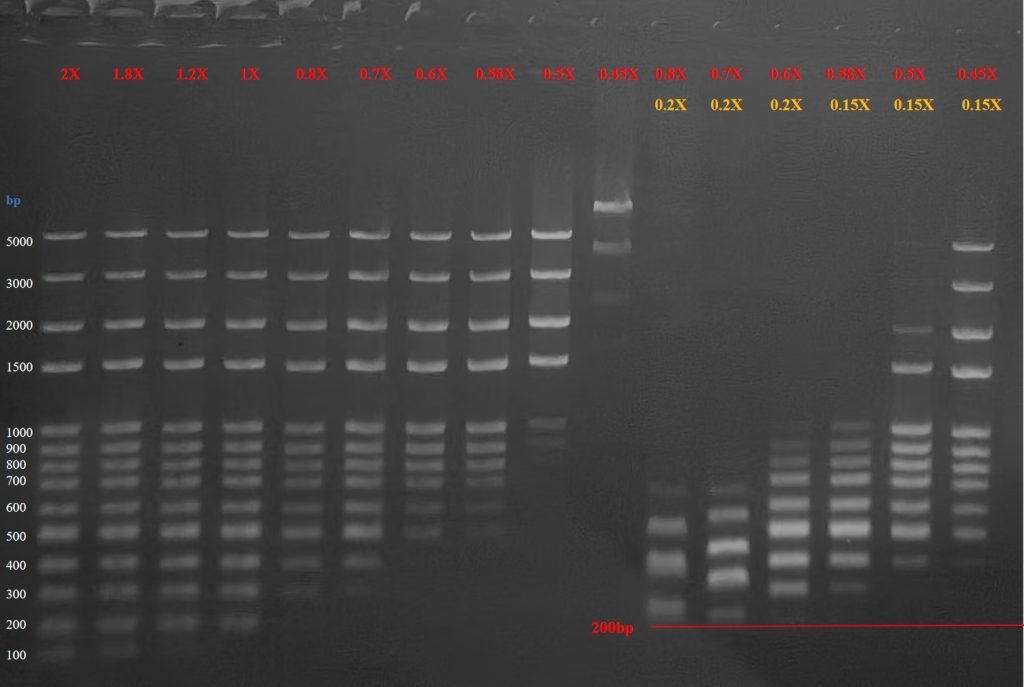

Using Magnetic Beads 220012 for DNA fragment purification (bilateral length sorting method), 100μl sample (containing 1μg total non-dye DNA Marker, sizes 100-5,000 bp). First round: Add 2X-0.45X volume of sorting magnetic beads for DNA fragment purification. Second round: Add 0.2-0.15X volume of sorting magnetic beads, followed by electrophoretic detection using 1.2% agarose gel.
Conclusion: In the classical 0.6X+0.2X volume ratio, 0.6X on one side can recover fragments of 400bp (inclusive) or more, while the double-sided 0.6X+0.2X can mainly recover fragments of 300-700bp.
Supplier
Shanghai Lingjun Biotechnology Co., Ltd. was established in 2016 which is a professional manufacturer of biomagnetic materials and nucleic acid extraction reagents.
We have rich experience in nucleic acid extraction and purification, protein purification, cell separation, chemiluminescence, and other technical fields.
Our products are widely used in many fields, such as medical testing, genetic testing, university research, genetic breeding, and so on. We not only provide products but also can undertake OEM, ODM, and other needs. If you have a related need, please feel free to contact us .
