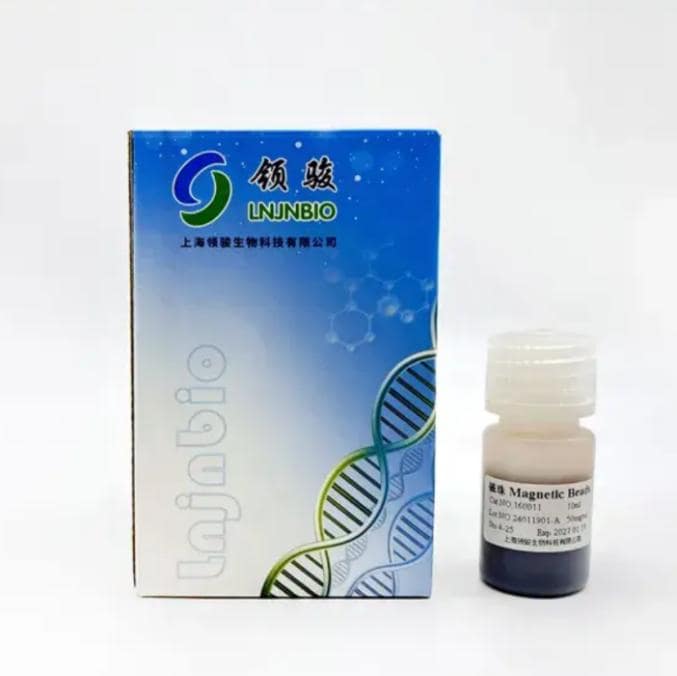

160011 Silica-based Magnetic Beads: Redefining the Efficiency and Purity of Nucleic Acid Extraction

Struggling with trace nucleic acid extraction? Magnetic Beads for Trace DNA/RNA Extraction and Purification 160011 from Shanghai Lingjun Bio (InjnBio) is here to solve your lab headaches! Leveraging advanced silica – based superparamagnetic microspheres, it streamlines the extraction of low – abundance nucleic acids from diverse samples (saliva, oral swabs, virus preservation solutions, etc.).

Basic Specifications: Clear & Practical

• Packaging Sizes: 2 mL / 10 mL / 50 mL / 500 mL / 1000 mL, flexible for different experimental scales
• Solid Content: 50 mg/mL, stable bead concentration per mL ensures uniform extraction performance
• Particle Size: 800 nm, optimized for efficient nucleic acid binding & separation
• Storage Conditions: 4 – 25℃, storable in regular lab environments without special temperature control
• Shelf Life: 3 years, long – term availability reduces procurement frequency

Key Advantages: Solve Extraction Pain Points

Smooth Dispersion & Suspension

No more tedious vortexing! Excellent suspension ensures easy pipetting, avoiding bead clumping. Consistent performance, every time.

High – Efficiency Adsorption & Recovery

Ultra – large surface area guarantees strong nucleic acid capture. Reliably recovers trace nucleic acids from low – abundance samples, ensuring high – yield results.

Rapid Magnetic Response

Superparamagnetic property enables fast, precise separation. Pair with automated systems for seamless “bind – wash – elute” workflows, slashing hands – on time.

Unmatched Consistency

Outstanding stability and batch – to – batch reproducibility. Stable performance across batches, eliminating result variability worries.

Automation – Friendly

Fully compatible with extraction reagents and automated platforms. Works with saliva, oral swabs, virus preservation solutions, etc., supporting high – throughput extraction. Free your hands and accelerate research.

Broad Applications: Precision Extraction

Ideal for trace viral nucleic acid extraction from saliva, oral swabs, virus preservation solutions. Surface – modified with Si – OH, it specifically binds nucleic acids under high – salt, low – pH conditions, excluding proteins and impurities. Delivers high – purity nucleic acids for qPCR, sequencing, and other downstream experiments.

Proven by Data: Reliable Results

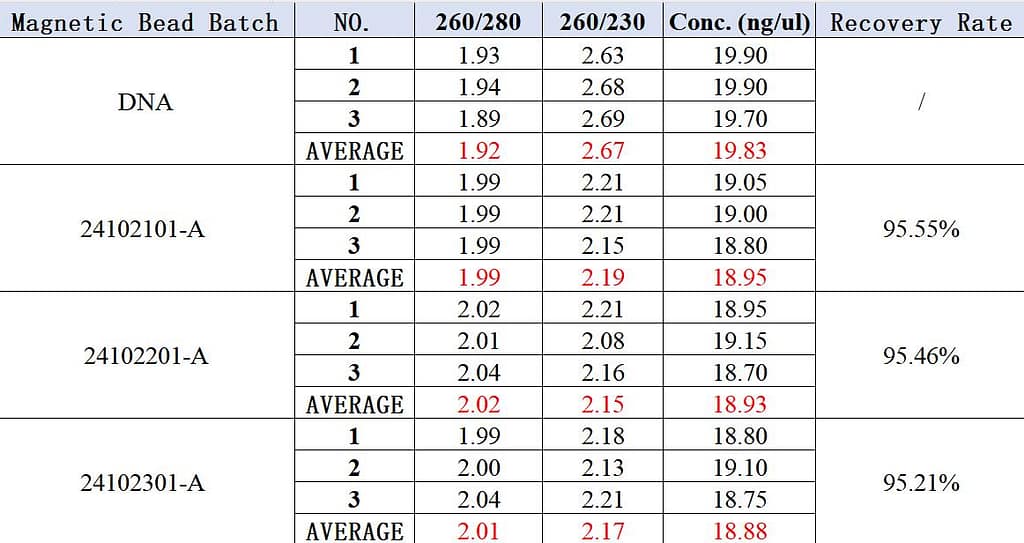

Case 1: Batch differences in DNA purification and recovery using 160011

The above is the purification and recovery of DNA templates using three different production batches of our 160011 magnetic beads. The recovery rate of each batch can reach 95%, and there is basically no difference among the three groups of experimental results. The product has good batch-to-batch stability, which can ensure the product quality.

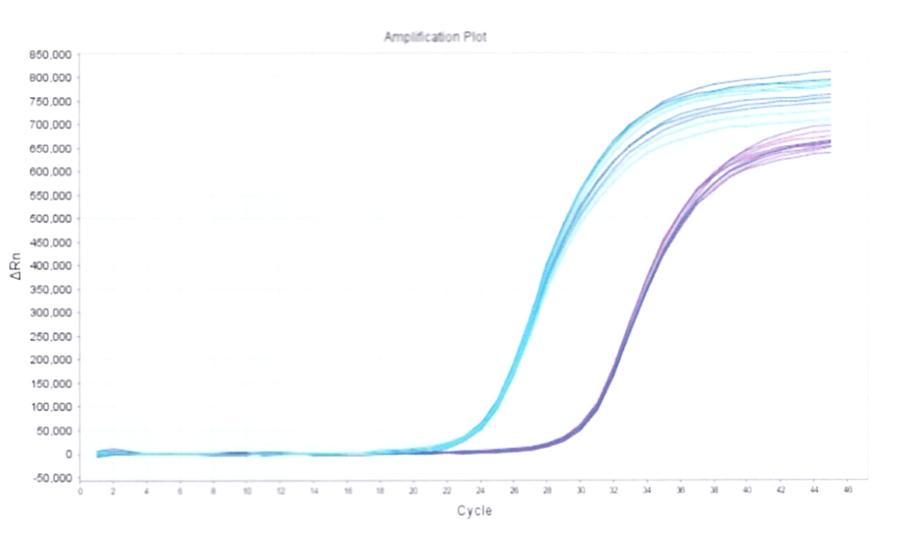

Case 2：The 160011 silica-based magnetic beads were used on the automatic nucleic acid extraction and purification instrument LJbio32H to extract the diluent of a certain coronavirus pseudovirus (there were two concentration gradients: high and low). Each concentration gradient was repeated 10 times. The extracted products were subjected to qPCR detection to examine the data related to precision. The experimental results showed that the amplification curves of both the high-concentration samples and the low-concentration samples exhibited good repeatability. The average values of the high-concentration samples and the low-concentration samples were 23.76 ± 0.14 and 29.84 ± 0.11, respectively; the CV values were 0.57% and 0.37%, respectively, and both values were less than 5%.

Choose 160011 beads to simplify trace nucleic acid extraction, boost lab efficiency, and drive your research forward. A must – have for every lab dealing with trace samples!
